We will explore various bolt types that serve as common fasteners in machinery, providing stability and reliability.
Bolt Types Overview
Carriage Bolts:
These bolts are easily recognizable by their smooth, round heads and unique square necks. Primarily utilized in woodworking, carriage bolts excel in applications where the smooth head is aesthetically pleasing or functional, such as in furniture making. The square neck, sinking into the wood, creates a self-locking feature that prevents the bolt from turning as the nut is tightened, ensuring a secure and stable join without the need for external tools to hold the bolt in place.
Double End Bolts:
Also known as stud bolts, these have threads on both ends, making them distinct from fully threaded rods. Their dual-threaded design allows for versatile applications, such as connecting different components or being embedded into a material with internal threads. They are highly adaptable and can be used in mechanical assemblies, construction, and even in the automotive industry, offering reliable connections in various applications.
Eye Bolts:
These are designed with a loop or 'eye' at one end, making them ideal for lifting applications or for guiding ropes and cables. The loop's size and strength vary depending on the intended use, ranging from light-duty tasks in wiring to heavy-duty lifting in construction. Eye bolts are often made of durable materials like stainless steel to withstand the stresses of lifting, ensuring safety and reliability in their applications.
Flange Bolts:
Flange bolts are characterized by a circular flange under the head that acts like a
washer to distribute the load. These bolts are typically used when a wider bearing surface is beneficial for the joining surfaces. The flange provides added support, eliminating the need for a separate washer and effectively reducing the risk of damage to the material being secured. They are commonly utilized in vehicle frames, especially where the bolt head would be difficult to access for tightening.

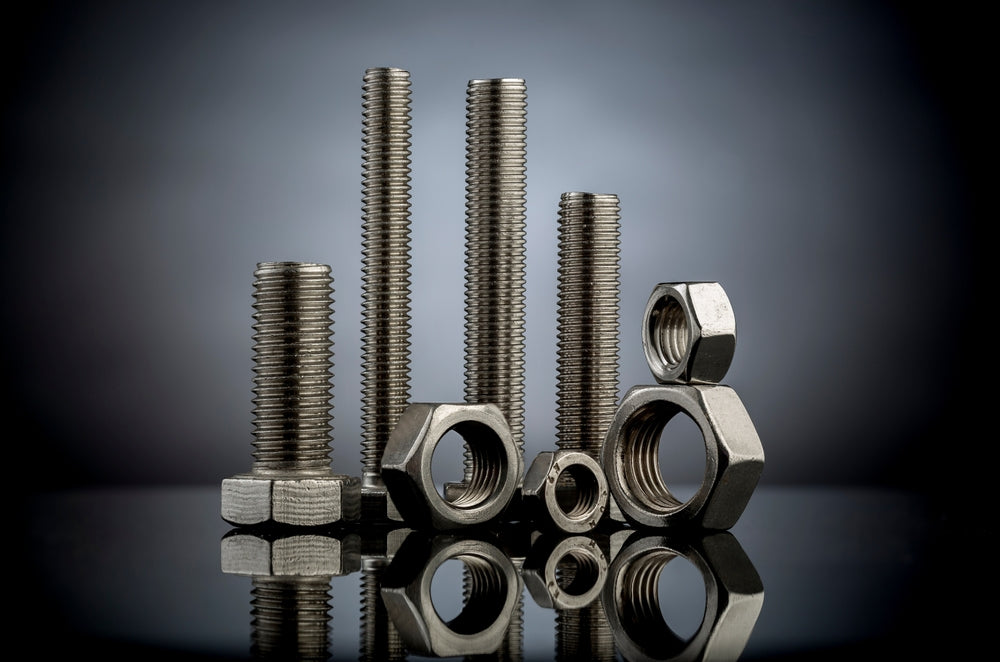

Hex-Head Bolts:
Distinguished by their six-sided heads, these bolts are a staple in construction and manufacturing. Their hexagonal shape allows for a range of angles for wrenching, particularly useful in tight spaces. Hex-head bolts are available in fully or partially threaded designs, where the latter offers enhanced shear strength, making them suitable for applications where shear forces are significant, such as in building frames and machinery.
Penta Bolts:
These feature a five-sided head, a design less common than the hex-head but offering additional security. The unique head design requires specific tools for fastening and unfastening, thereby providing an added layer of security against tampering or unauthorized disassembly. Penta bolts are often used in public facilities, outdoor equipment, and in applications where security and tamper resistance are priorities.
Plow Bolts:
Recognized by their flat or slightly tapered heads, plow bolts are designed to fit flush with the surface they're fastened to. This design minimizes interference in applications where a protruding bolt head could cause problems, such as in the blades of plows—hence the name. The smooth head also helps prevent the accumulation of debris and material on the bolt, ensuring that it remains secure in high-wear applications.
Shoulder Bolts:
Also known as stripper bolts, shoulder bolts have an unthreaded section below the head, which serves as a pivot point or a guide for moving parts. The shoulder provides a precise pivot area for rotating parts or a sturdy, predictable spacer for stationary components. These bolts are crucial in applications where parts must maintain a specific distance from each other or where components must have a free area to move, such as in mechanical linkages or rollers.
Socket Head Bolts:
Also known as Allen bolts, these are characterized by their cylindrical head with a hexagonal recess. This design allows them to be tightened with an Allen wrench or hex socket tool, providing a clean, flush finish with the surface. They are available in various head styles, including button, flat, or domed, which offers
versatility in appearance and function. Socket head bolts are often used in applications where space is limited and a smooth, low-profile head is needed, such as in machinery and electronic equipment.
U-Bolts:
These bolts, shaped like the letter 'U', are primarily used to secure piping, tubing, or other round-shaped objects. By encircling the object, U-bolts provide a firm grip without the need for penetrating the material, making them ideal for securing pipes, cables, or other cylindrical objects. Their non-invasive nature is particularly useful in plumbing, electrical installations, and automotive exhaust systems, where they provide a secure hold without damaging the secured material. Each bolt type is designed with specific functionalities and applications in mind, ensuring that whatever the project demands, there's a bolt suited for the task, combining strength, precision, and reliability.
